Steel Trench Box

4 in. Steel Single Wall Trench Shield

Uses:
XLS 4 in. single wall steel trench shields are designed for use with medium crawler excavators in trenches where weight and space are critical.

Standard Features:

• Reinforced top rails.
• Adjustable and stackable.
• Thru-wall lifting lugs.
• Four-point lifting system.
• Thru-wall collars.
• Integral spreader collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Pulling lugs.
• Mud plate.
• Corner brackets.
• Custom spreader location.
• Custom paint.
• Stacking Pockets.
• T-connection cut-outs.

Spreader Options:

• 4" schedule 40 (standard).
• 6" schedule 80.
• 4-pipe independent set.
• 5-pipe independent set.
• Custom collar sizes available.

4 in. Steel Double Wall Trench Shield

Uses:
The XLD 4 in. double wall steel shield is the most popular shield in the Efficiency line. They are designed for use with medium crawler excavators in trenches where weight and space are critical.

Standard Features:

• Reinforced top rails.
• Adjustable and stackable.
• Thru-wall lifting lugs.
• Four-point lifting system.
• Thru-wall collars.
• Triple vertical tube collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• Plug welding on double wall shields.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Pulling lugs.
• Foam filler.
• Mud plate.
• Corner brackets.
• Custom spreader location.
• Custom paint.
• Stacking Pockets.
• T-connection cut-outs.

Spreader Options:

• 8" schedule 80 (standard).
• 6" schedule 80.
• 4-pipe independent set.
• 5-pipe independent set.
• Custom collar sizes available.

6 In. Hi-Tensile Steel Double Wall Trench Shield

Uses:
The HT6 is the most versatile steel shield available. It combines depth capability with lightweight narrow sidewalls. Designed for medium range excavators.

Standard Features:

• Reinforced top rails.
• Heavy duty 3/8” top tube.
• Adjustable and stackable.
• Thru-wall lifting lugs.
• Four-point lifting system.
• Thru-wall collars.
• Triple vertical tube collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• Plug welding on double wall shields.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Pulling lugs.
• Foam filler.
• Mud plate.
• Corner brackets.
• Custom spreader location.
• Custom paint.
• Stacking Pockets.
• T-connection cut-outs.

Spreader Options:

• 8" schedule 80 (standard).
• 3-pipe and mud plate set.
• 4-pipe independent set.
• 4-pipe connected set.
• 5-pipe independent set.
• 5-pipe connected set.

8 In. Hi-Tensile Steel Double Wall Trench Shield

Uses:
The HT8 is an excellent choice for deeper, more demanding work. The 8 in. double wall construction minimizes sidewall deflection and provides extended shield durability.

Standard Features:

• Reinforced top rails.
• Heavy duty 3/8” top tube.
• Adjustable and stackable.
• Thru-wall lifting lugs.
• Four-point lifting system.
• Thru-wall collars.
• Triple vertical tube collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• Plug welding on double wall shields.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Pulling lugs.
• Foam filler.
• Mud plate.
• Corner brackets.
• Custom spreader location.
• Custom paint.
• Stacking Pockets.
• T-connection cut-outs.

Spreader Options:

• 8" schedule 80 (standard).
• 3-pipe and mud plate set.
• 4-pipe independent set.
• 4-pipe connected set.
• 5-pipe independent set.
• 5-pipe connected set.

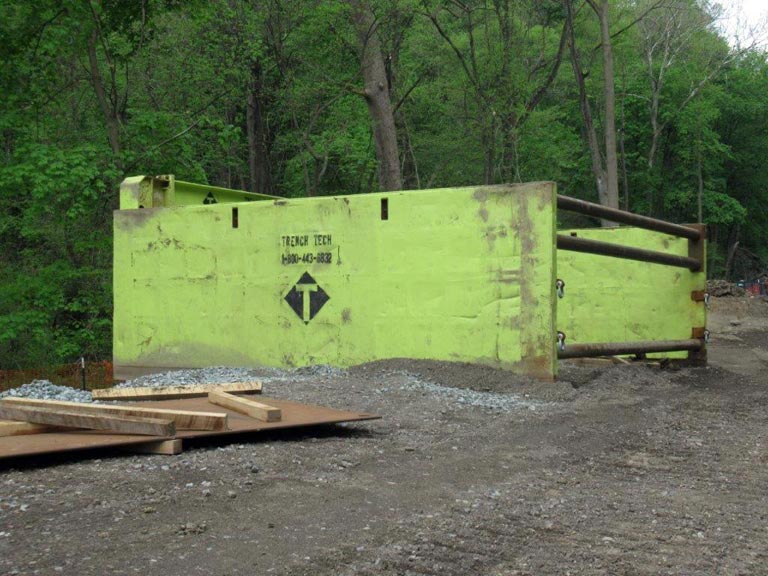

8 In. Heavy Duty Hi-Tensile Steel Double Wall Shield

Uses:
This 8 in. double wall trench shield is available with panels up to 12 ft. high and 36 ft. long. The HDHT8 offers maximum depth ratings to handle the most demanding jobs with larger excavators.

Standard Features:

• Reinforced top rails.
• Heavy duty 3/8” top tube.
• Adjustable and stackable.
• Thru-wall lifting lugs.
• Four-point lifting system.
• Thru-wall collars.
• Triple vertical tube collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• Plug welding on double wall shields.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Pulling lugs.
• Foam filler.
• Mud plate.
• Corner brackets.
• Custom spreader location.
• Custom paint.
• Stacking Pockets.
• T-connection cut-outs.

Spreader Options:

• 8" schedule 80 (standard).
• 10" schedule 120.
• 3-pipe and mud plate set.
• 4-pipe independent set.
• 4-pipe connected set.
• 5-pipe independent set.
• 5-pipe connected set.

10 & 12 in. Hi-Tensile Steel Double Wall Trench Shield

Uses:
Premium XL shields are engineered to withstand heavy soil pressure. This model is designed to be used with high capacity excavators. With 10 or 12 in. thick sidewalls and heavy duty spreaders, the shield is capable of handling deep, wet soil pressures on tough jobs.

Standard Features:

• Extra heavy steel plate and structural members.
• Extra heavy duty spreader system.
• Reinforced top rails.
• Heavy duty 3/8” top tube.
• Adjustable and stackable.
• Thru-wall lifting lugs.
• Four-point lift system.
• Thru-wall collars.
• Triple vertical tube collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• Plug welding on double wall shields.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Pulling lugs.
• Foam filler.
• Mud plate.
• Corner brackets.
• Custom spreader location.
• Custom paint.
• Stacking Pockets.
• T-connection cut-outs.

Spreader Options:

• 10" schedule 120 (standard).
• 3-pipe and mud plate set.
• 4-pipe independent set.
• 4-pipe connected set.
• 5-pipe independent set.
• 5-pipe connected set.

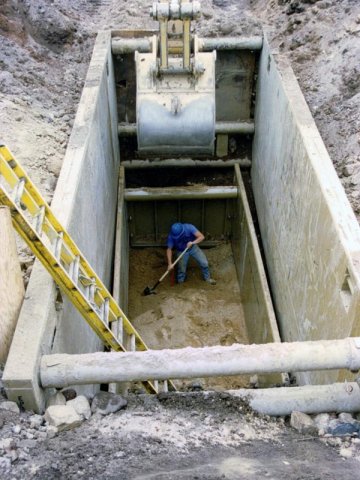

Uses:
Prevents under-box caving of unstable or wet soil. The Inner Shield Liner fits inside of a regular trench shield and is much faster and safer to use than steel plates and sheeting which are not recommended. It also increases the speed of placing pipe to grade.

Features:

• Reinforced top rails.
• Foam filler.
• Mud plate.
• Adjustable.
• Thru-wall lifting lugs.
• Four-point lift system.
• Thru-wall collars.
• Triple vertical tube collar post design.
• Pinned spreader connections.
• Strongest knife edge in the industry.
• Plug welding.
• High strength mill certified steel.
• Professional Engineer design and depth certification.

Options:

• Pushing blocks.
• Custom spreader location.

Spreader Options:

• 8" schedule 80 (standard).
• 3-pipe and mud plate set (standard).
• 4-pipe independent set.
