Fall Protection / Fall Arrest Systems
![](images/fall-protection/fall-protection-1.jpg)
![](images/fall-protection/fall-arrest2.jpg)

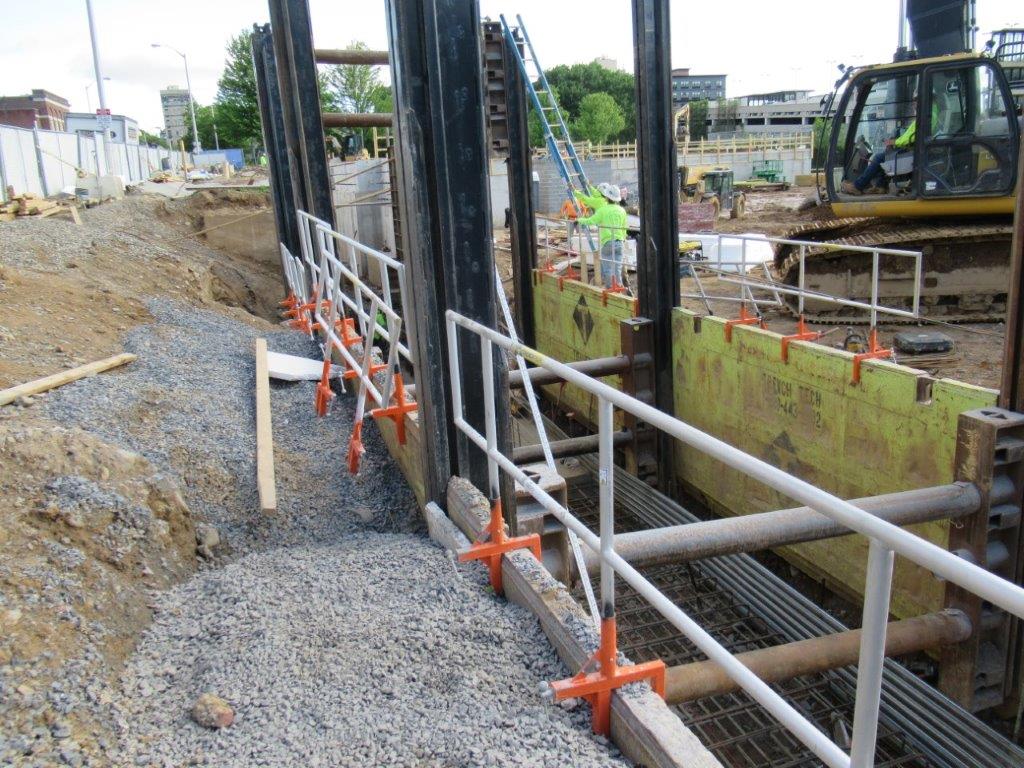

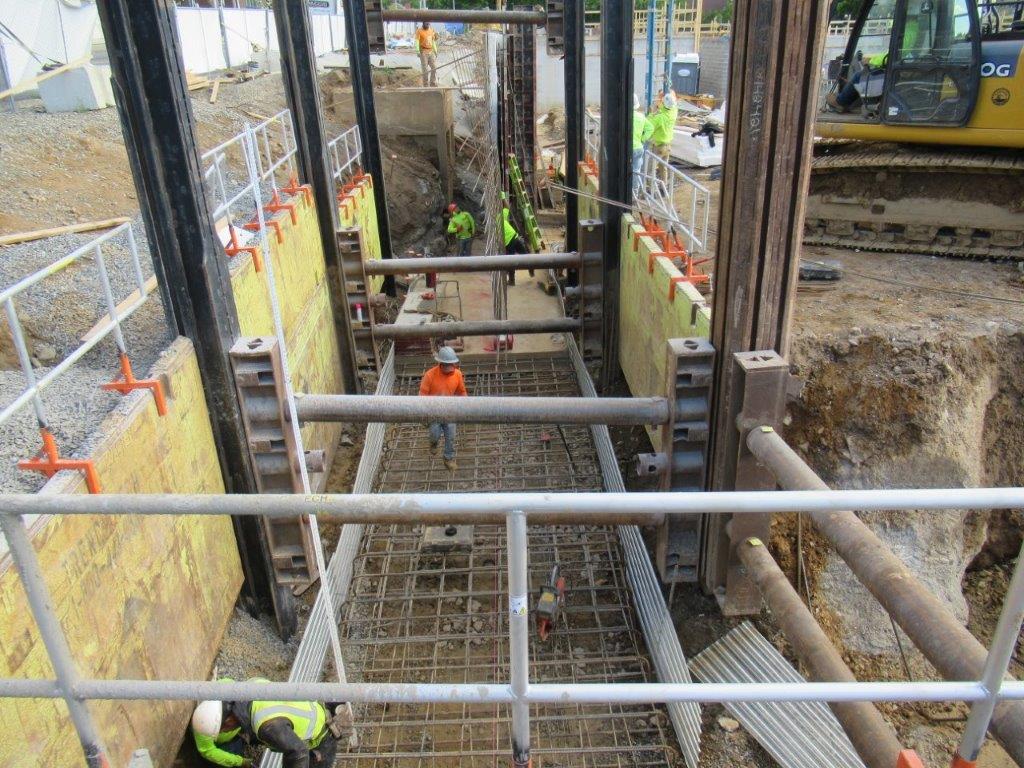

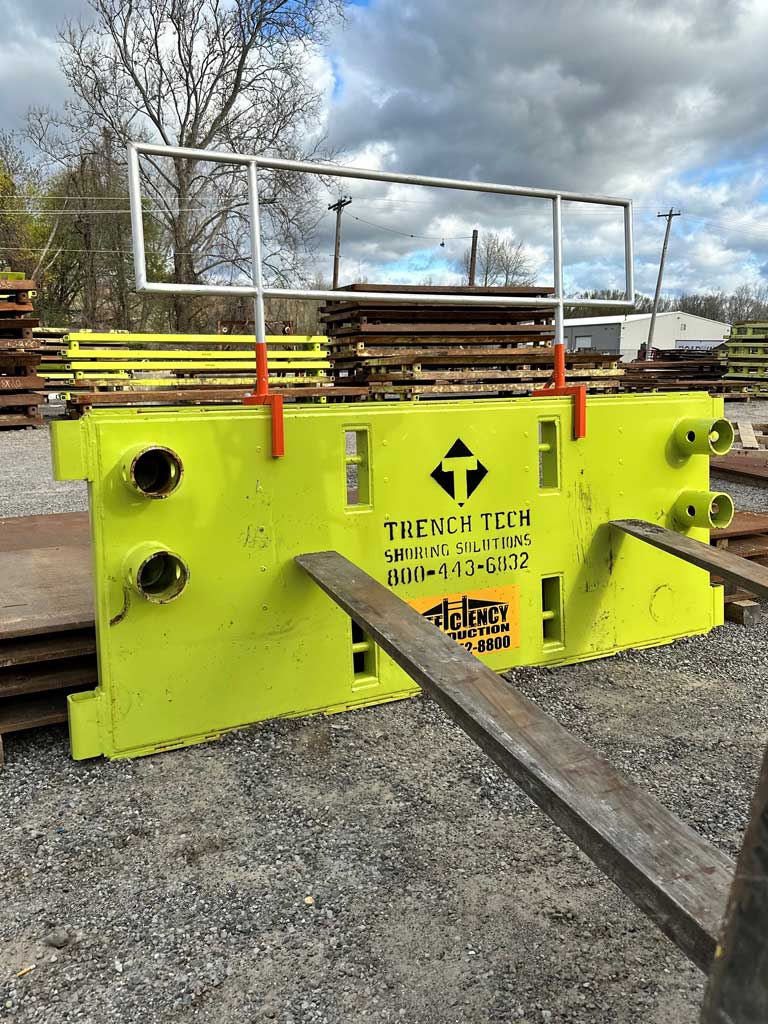

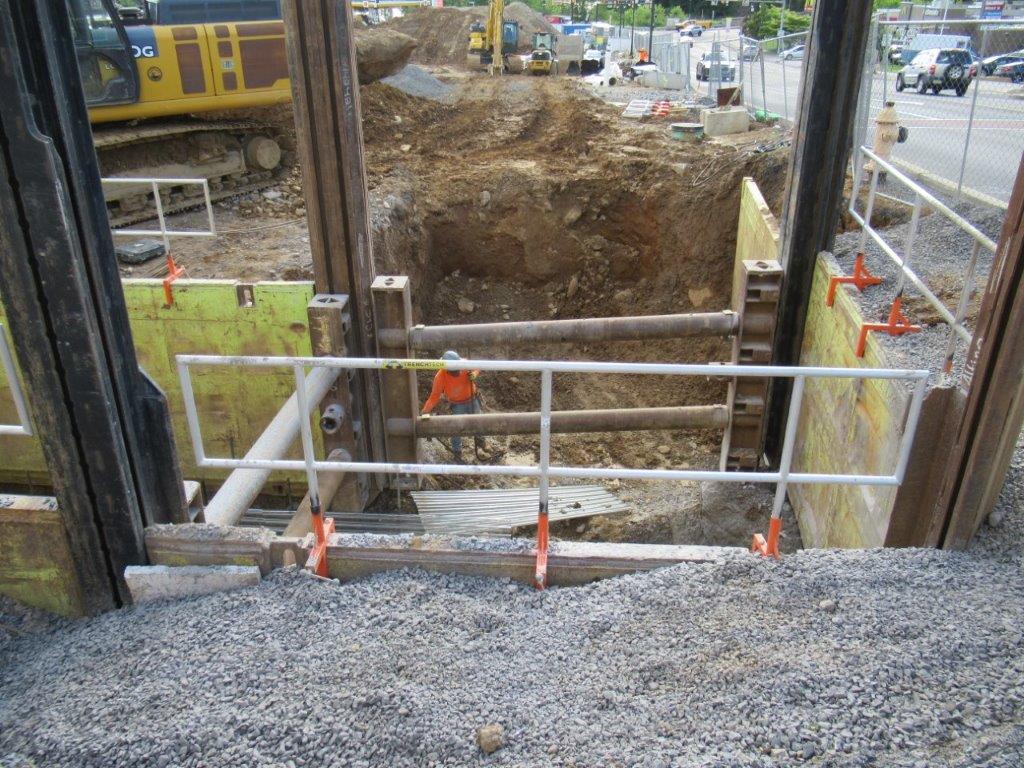

Fall Protection System
TrenchTech's fall protection system consists of a pair of rails and a fall protection post.
The rails are adjustable in width from 4' to 6', and must be used within those ranges.
The posts must be secured to the top of a slide rail panel or trench shield. They are to be secured using 5/8" - 11 ASTM A325 hex head cap screws. They shall be tightened to 154 foot-pounds of torque.
The system is designed to withstand a 300 pound load at any point on the system. Thus a 300 pound load could be supported anywhere onto the system.
Parapet Guard Rail
TrenchTech's new, light-weight fall protection / guard rail system.
This system uses 10'L 2x4's. It is light, easy to assemble and tighten by hand.
Product Images
![](/_gallery/uploads/Bensalem-Pa_5-8-19_1.jpg)
![](/_gallery/uploads/slide-rail-mb-21.jpg)
![](/_gallery/uploads/Bloomin_Glen_Ottsville,Pa._4-14-17_004_1.jpg)
![](/_gallery/uploads/Sweeney_GSK_0031.jpg)
![](/_gallery/uploads/BPost-GRail-Newstyle2011_05.jpg)
![](/_gallery/uploads/Myers_309_Trench_Box_6-6-14_005.jpg)
View many more images in the TrenchTech, Inc. fall protection systems gallery.
