Slide Rail Systems - 3, 4-Sided Pit | ClearSpan | Multiple Bay | Shore-Trak

A modular system that is installed as you dig, Slide Rail offers many benefits:

• Reduces size of your shoring crew
• Shortens installation and removal time
• Minimizes soil subsidence
• Shore depths up to 32' (Triple Rail)
• Shore large clear span pits
• Aids in controlling difficult soil conditions

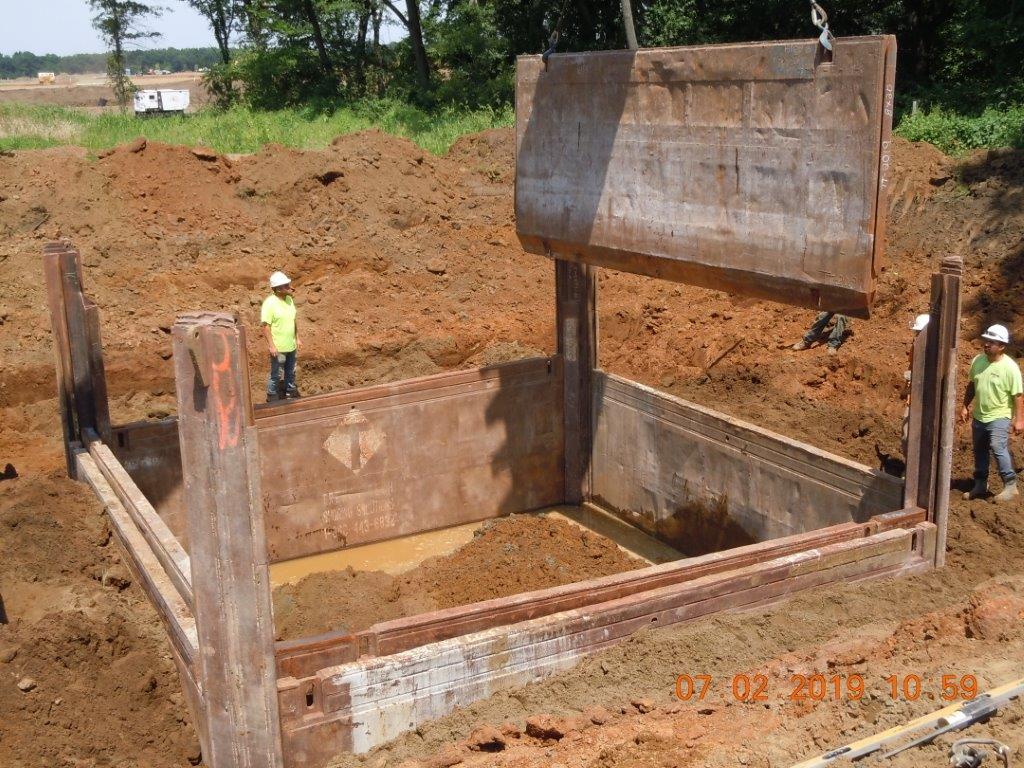

3, 4-Sided Pit

Individual Slide Rail components offer the option of using lighter equipment when installing the system. The cost of rental and installation can be far less than steel sheeting or soldier beam and lagging.

• Installation and required excavation are completed together, saving time and reducing cost
• Wall to wall working space is greater
• Minimal vibration to adjacent buildings and surrounding structures

View full Slide Rail details and more

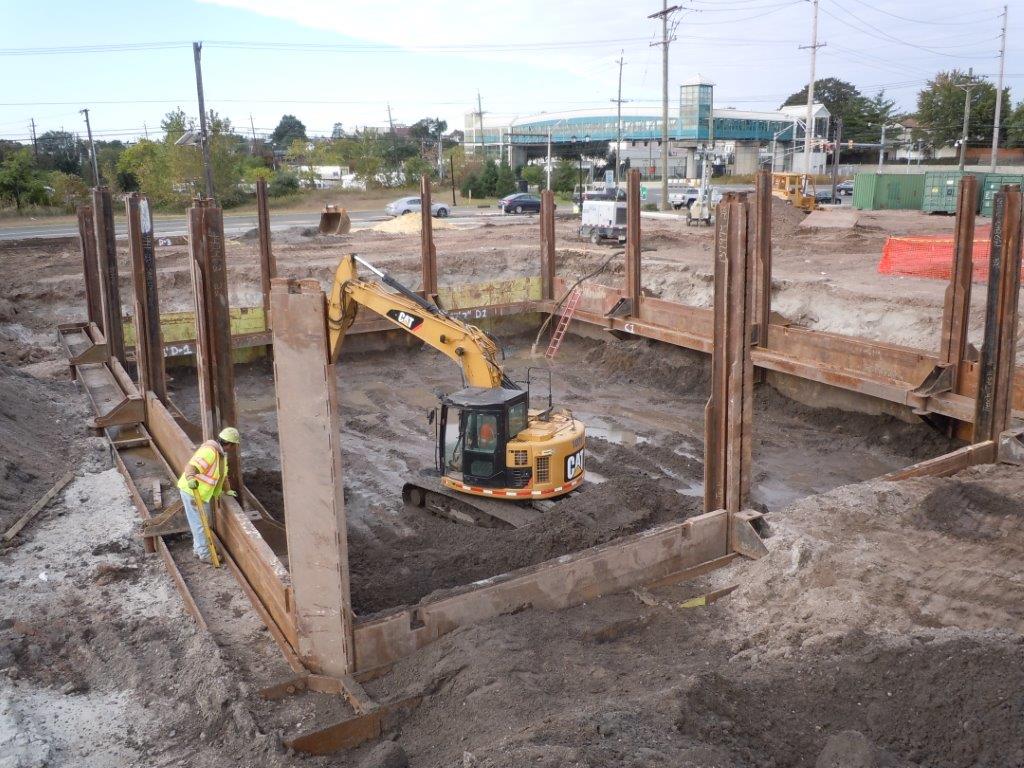

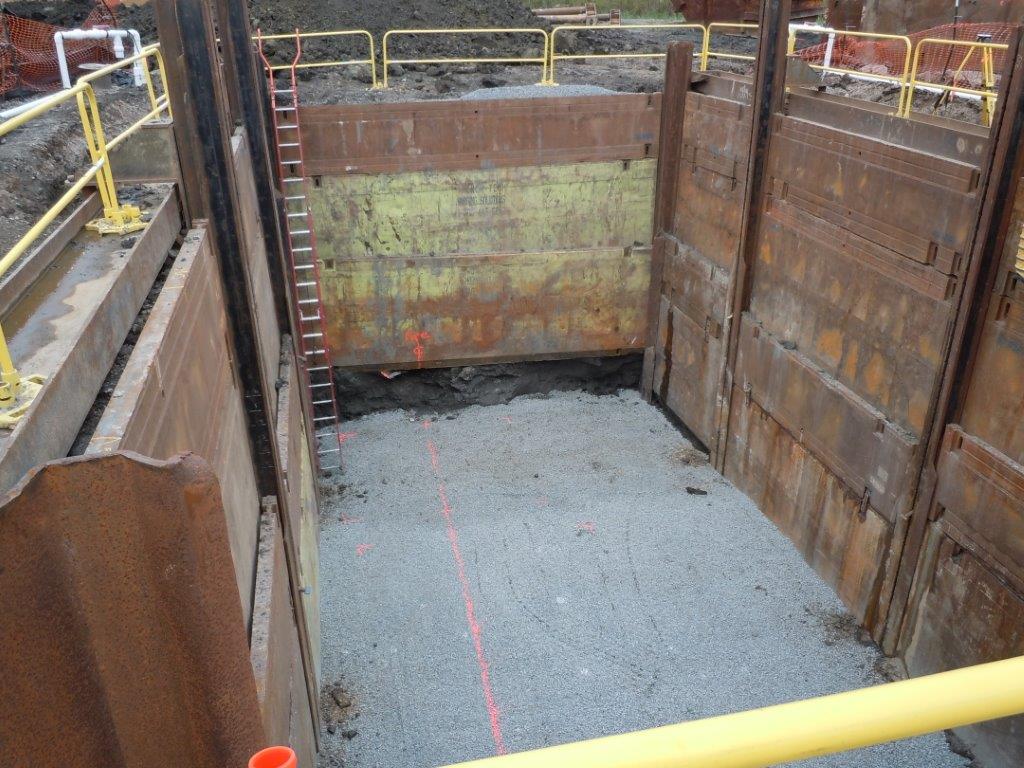

ClearSpan

TrenchTech's ClearSpan System incorporates special walers for larger unobstructed 4-sided working pits for site specific jobs.

• Provides a large unobstructed working area
• Cost effective compared to steel sheeting and other methods
• Heavy duty panels provide minimal deflection
• Minimal vibration to adjacent buildings and surrounding structures

View full Slide Rail details and more

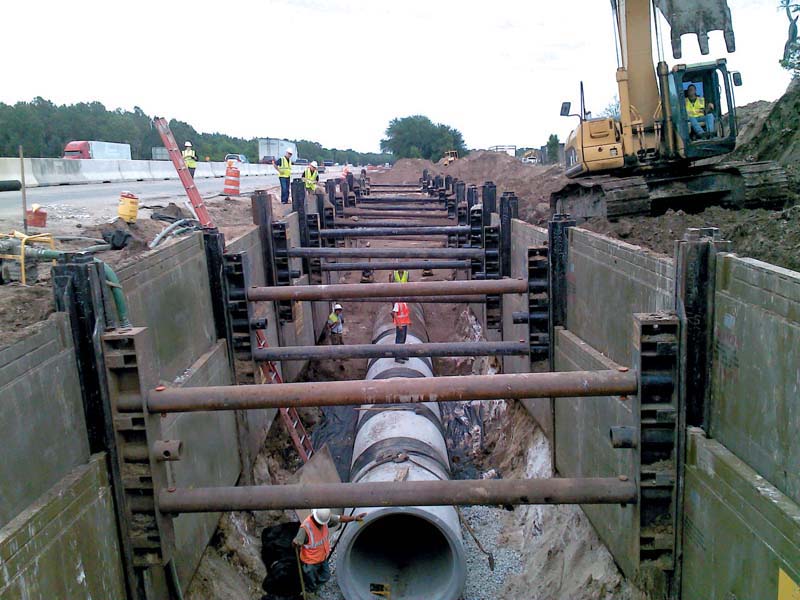

Multiple Bay

An excellent alternative to other conventional methods. Enables simultaneous pipe installation in one bay, while backfilling the previous bay. Longer pipe may be installed by raising or removing the parallel beam.

• Innovative parallel beam eliminates post deflection during installation and removal. The roller design facilitates the vertical movement of the integrated beam and spreader unit.
• The parallel beam can be used with standard or arch spreaders

View full Slide Rail details and more

Shore-Trak

The industry's only pre-fabricated, pre-engineered cross-trench utility shielding system, TrenchTech's innovative Slide Rail and Shore-Trak combination system allows for shielding around existing utilities while providing excellent protection for pipe installation crews.

• Shore-Trak guide frames connect to Slide Rail posts where utilities are located.
• Both systems can be used independently.
• Can be used in a pit, ClearSpan, or Linear or 4-sided Multi-Bay application.

View full Slide Rail details and more
